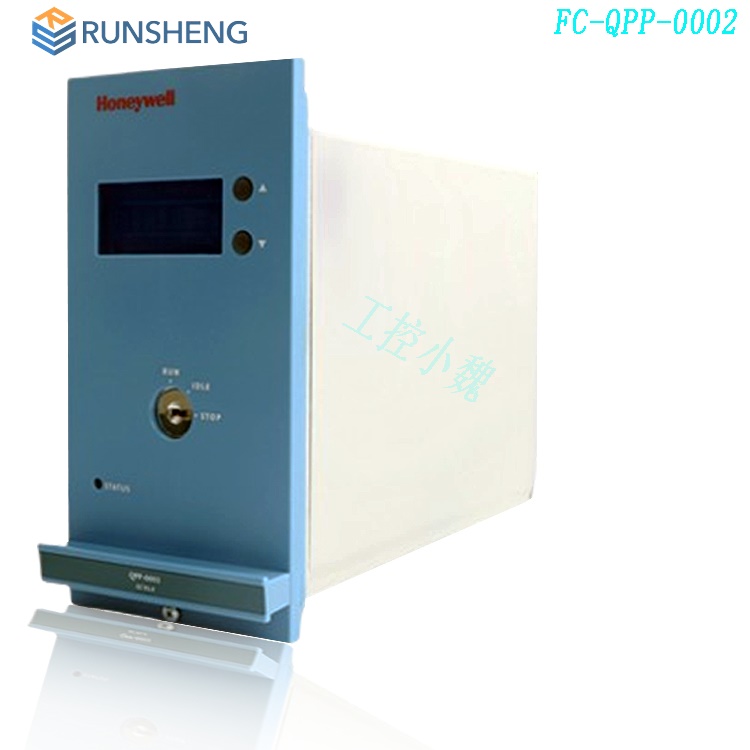

FC-QPP-0002 | Honeywell | Quad Processor

　　The Honeywell Safety Manager™ is a highly reliable, high-integrity safety systemfor safety-critical control applications. As part of Honeywell’s Experion™ PKS,integrated into PlantScape, or in stand-alone applications, Safety Manager formsthe basis for functional safety, thus providing protection of persons, plant equipment, and the environment, combined with optimum availability for continuous plant operation.

　　Safety Manager is a user-programmable, modular, microprocessor-based safety system, which can perform a wide range of high-integrity process control and safety instrumented functions, including:

　　High-integrity process control,

　　Burner/boiler management systems,

　　Process safeguarding and emergency shutdown,

　　Turbine and compressor safeguarding,

　　Fire and gas detection systems, and

　　Pipeline monitoring.

　　Improves business results

　　Safety Manager™ is the natural evolution of the current proven in use Fail Safe Controller (FSC®) safety system platform, which has gained global acceptance for more than 15 years. It embeds proven technology with two decades of Honeywell process safety management expertise in integrating process safety data, applications, system diagnostics and critical control strategies.

　　Safety Manager is designed to improve a company’s business results by fundamentally enhancing process safety and protecting plant assets and people. Through tight integration with Experion™ Process Knowledge System (PKS), safety systems are unified into one single safety system architecture, assuring a unique opportunity to improve both safety and availability of processes.

　　Experion PKS provides unprecedented connectivity through all levels of process and business operations and optimizes work processes, improves routine maintenance efficiencies, enhances safety management, and releases personnel from manual processes.

　　Built on QMR technology

　　Safety Manager™ is based on the unique and field proven Quadruple Modular Redundant (QMR™) diagnostic based technology with a 2oo4D architecture. QMR enhances system flexibility, increases diagnostic messaging capabilities and improves system fault tolerance for critical applications. It enables the handling of multiple system faults within Safety Manager, matching the needs of critical control applications.

　　Additionally Safety Manager provides the basis for integrating SIL (safety integrity level) rated sensors and valve actuators in the field ensuring that your safety instrumented functions are well in place to protect complex and hazardous processes. Whether it is integrating SIL1-2 safety transmitters (ST3000 and STT250) or safety valve positioners for improved safety and field asset management, Safety Manager is the ideal enabler for your Safety Instrumented Systems (SIS)

　　Benefits

　　Improved engineering and design efficiency – designing safety networks has never been easier

　　Improved system reliability and robustness – through rigorous Design for Six Sigma (DFSS) process and the IEC 61508 development criteria

　　Improved process availability – applying the proven-in-use QMR technology allows uninterrupted process operation in case of any system degradation

　　Improved operation and maintenance performance – through unification of critical process data and information with the process control information, allowing single window access for operation and maintenance

　　Protection of investments – Safety Manager™ allows and supports migration of FSC to the latest QMR safety technology

　　Compliance to safety standards – with all SIL3 safety compliance tools, hardware and software, Safety Manager provides excellent protection for safety applications across multiple industries throughout the lifetime of an installation.

　　Compliance to safety standards

　　A major requirement for compliance to IEC 61508 is the availability of a change history of applications. With the new Safety Builder this is no longer an issue as the Safety Audit Tracker provides an automatically enabled audit trail. It will keep track of all the changes performed on an application automatically. Difficult procedures or extensive loggings are not required. The Safety Audit Tracker, together with the Application Verification Tool, is all that is necessary.

　　Safety Manager™ complies with the following international standards:

　　For BMS: NFPA 85, 86, VDE 0116

　　For ESD: IEC 61508, ISA S84.01, DIN V 19250, UL, FM, ATEX

　　For F&G: EN54-2, NFPA 72, Lloyd’s Register.

　　In summary, with all SIL3 safety compliance tools, hardware and software, Honeywell’s Safety Manager provides excellent protection for safety applications across multiple industries throughout the lifetime of an installation. Together with Experion or any other process control systems, Safety Manager provides the basis for critical control and safety unification, reducing risks and installed costs, and improving plant safety.
more details :

FC-QPP-0002.pdf
