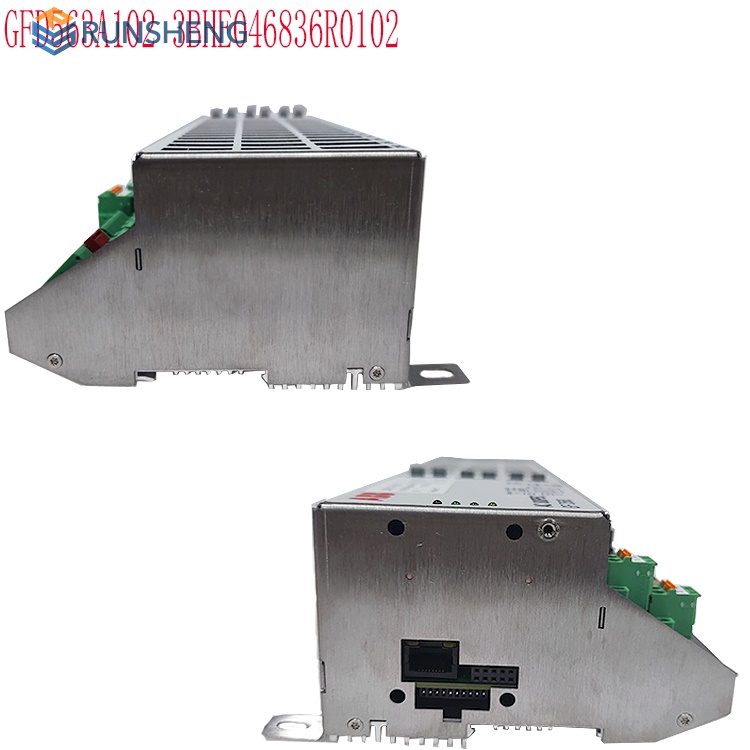

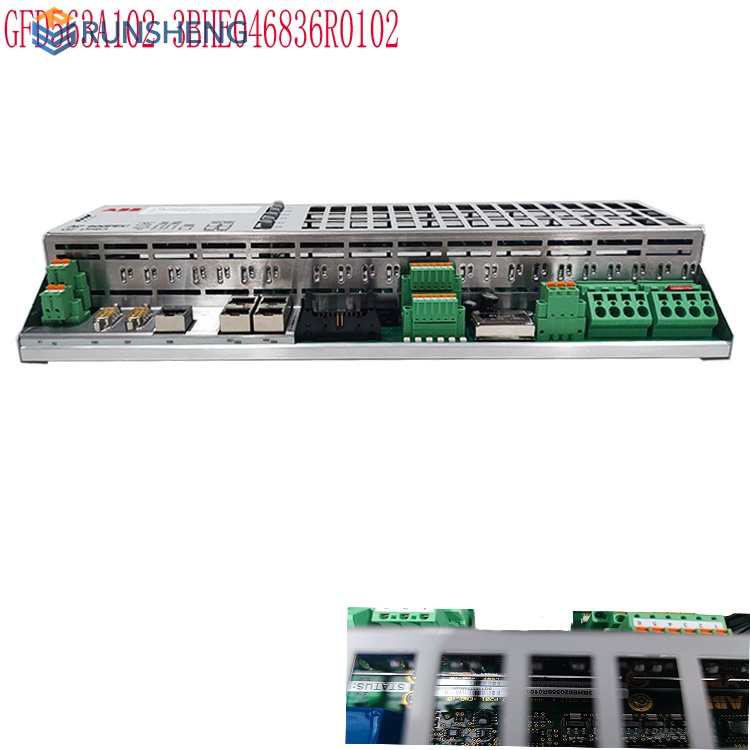

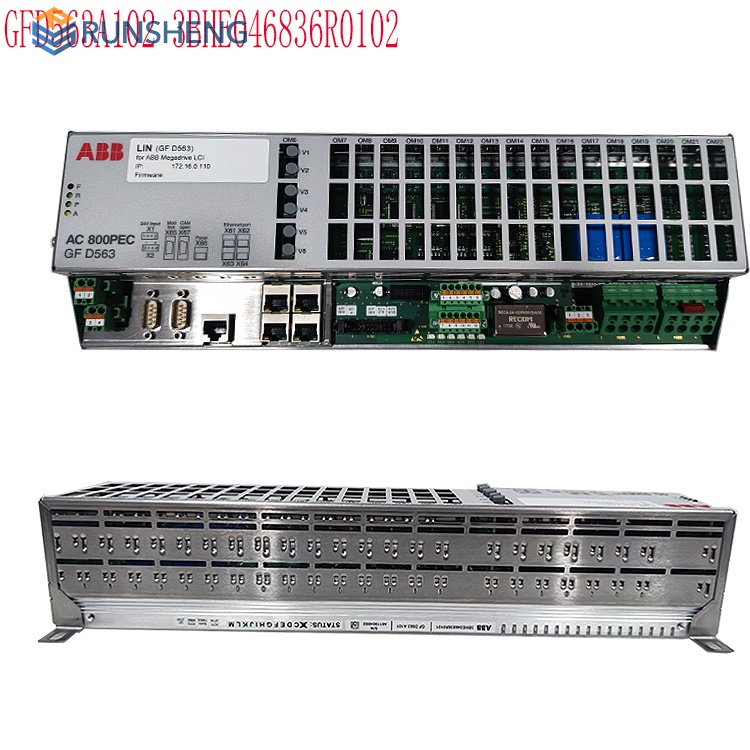

Which module is used with the ABB GFD563A102 3BHE046836R0102?

　　The ABB GFD563A102 3BHE046836R0102 programmable controller requires the following modules and systems for functional expansion and integration:

　　Core Supporting Modules

　　I/O Expansion Modules

　　Basic Configuration: Supports 62 mixed I/Os (30 digital inputs including two shaft encoders, two analog inputs, 28 digital outputs, and two high-speed digital outputs).

　　Expansion Capability: Expandable up to 1024 I/Os via local/remote expansion modules (up to 1000 meters), suitable for industrial scenarios such as machine tool control and packaging machinery.

　　Typical modules include the ABB GDB021BE01, ABB S-113H 3BHB018008R0003, and PFSK152 3BSE018877R1, supporting digital/analog signal processing and high-speed outputs.

　　Communication Module

　　Protocol Support: Compatible with industrial protocols such as Ethernet, PROFIBUS DP, and DF1. Requires the corresponding communication module (such as an EtherNet/IP module or PROFIBUS DP master/slave module).

　　Integration Examples: Requires PanelBuilder 32 software for IP/gateway configuration, or ProSoft Configuration Builder for PROFIBUS compatibility by loading a GSD file.

　　Power and Protection Module

　　Redundant Power Supply: Requires a redundant power supply system (such as a dual power switching module) to ensure power supply stability; integrated overcurrent, overvoltage, and overtemperature protection functions are also required.

　　Grounding and Shielding: Grid-type shield grounding (resistance ≤ 4Ω) and SPD surge protection devices are required to mitigate electromagnetic interference.

　　System-Level Integration

　　Motion Control System: Combines with shaft encoders and servo drives to achieve high-precision motion control (such as robot trajectory planning and CNC machine synchronization).

　　Excitation System: In power generation scenarios, requires integration with the UNITROL 6000 X-power excitation system to support generator voltage stabilization and reactive power distribution.

　　Data Collection and Analysis: Built-in data processing capabilities and expansion modules (such as high-speed digital output modules) enable real-time data collection, historical records (exported in CSV format), and alarm threshold configuration.

　　Compatibility Verification

　　Hardware Compatibility: Ensure the module and controller hardware versions are consistent (e.g., firmware V217) to avoid communication anomalies caused by version mismatches.

　　Software Configuration: Use ABB official tools (e.g., 3500 Rack Configuration Software) to set parameters, including baud rate, node address, and alarm logic.

　　Scalability Verification: Remote expansion modules must be connected via fiber optic or twisted-pair cables to verify that signal attenuation and latency meet industry standards (e.g., PROFIBUS DP length limits).

　　Typical Application Scenarios

　　Industrial Automation: Machine tool control, packaging production lines, and material handling systems.

　　Energy: Generator excitation regulation and wind/solar power generation monitoring.

　　Infrastructure: Building air conditioning/lighting control and water treatment plant flow monitoring.
